By David Manners Posted on 29th July 2025 | Modified on 29th July 2025
Magnachip Semiconductor has brought out an 80V MXT MV MOSFET, MDLT080N017RH, featuring a TOLT (TO-Leaded Top-Side Cooling) package.

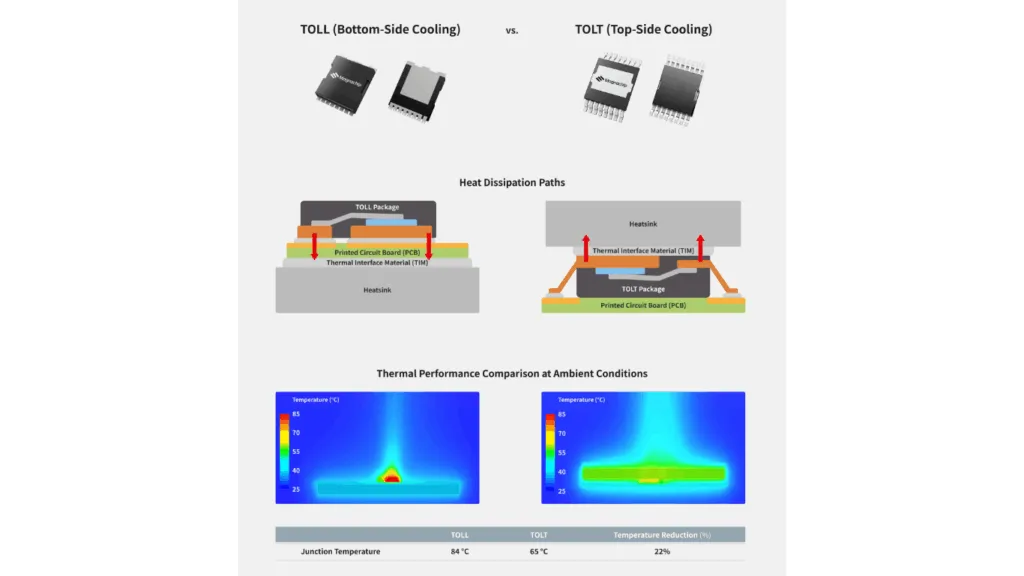

Unlike conventional TOLL (TO-Leadless) packages that dissipate heat through the bottom, the TOLT package is engineered to release heat directly from the top via a mounted metal heat sink. This structure reduces thermal resistance between the junction and the external environment, making it suitable for thermally demanding applications, such as e-scooters and LEVs.
Magnachip’s New TOLT-Packaged 80V MXT MV MOSFET
|
Product |
MDLT080N017RH |
|
Rated Voltage |
80V |
|
RDS(on) |
1.7 mΩ (Max., VGS=10V) |
|
Package |
TOLT (TO-Leaded Top-Side Cooling) |
|
Applications |
E-scooters, LEVs, e-bikes, personal mobility devices, high-efficiency DC motor drives, battery management systems, power distribution systems, and more. |
