Called the Patriot series, the antenna supports 5G and 4G cellular (600–6000 MHz), with both dual-band GNSS (L1 and L1/ L5) and a secondary GNSS (L1), Wi-Fi (2.4, 5.8, and 7.1 GHz), SDARS (2.3 GHz), and LMR/TETRA (380–400 MHz and 700–900 MHz), the Patriot enables concurrent broadband, navigation, telemetry, and voice services. A dedicated whip element with full P25 VHF/UHF/700-900 MHz support is available in various lengths to meet frequency requirements.
The 17- and 18-in-1 configurations are available now, with additional variants offering combinations of up to 18 integrated elements to follow based on customer requirements.
“The Patriot was developed in close collaboration with first responder agencies who told us they needed a simple, more reliable way to manage vehicle connectivity,” says Taoglas vp Chris Friend, “this flexible antenna platform allows them to consolidate critical network functions into a single unit.”

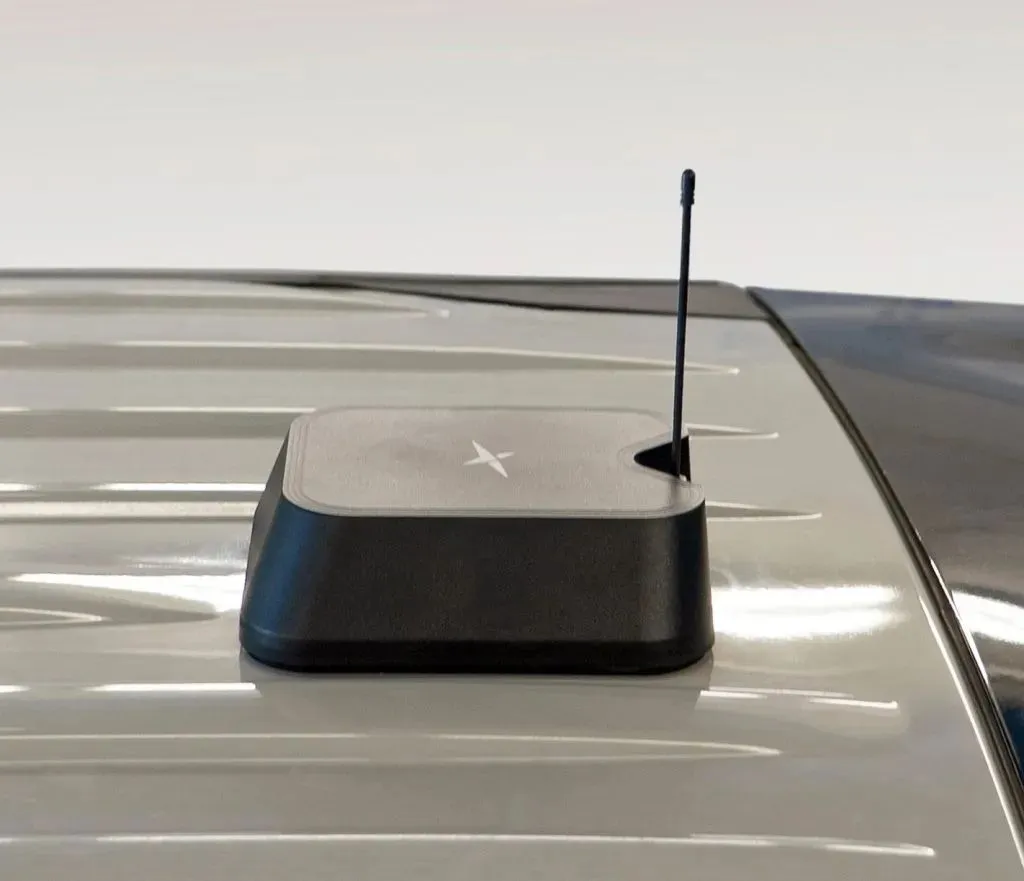

The antenna’s IK08- and IP69K-rated housing (205 mm length x 180 mm width + variable whip height between 60 mm – 164 mm) fits between roof ribs using the OEM mounting,
Signal performance across all supported bands has been engineered for optimal gain, isolation, and efficiency. Cable types, lengths, and connector options are fully customisable.
Further information, including detailed specifications and configuration options, is available at www.taoglas.com. The Patriot antenna can be pre-ordered through GetWireless now
