These are backed up by a 200MHz 32bit processing core with double-precision floating-point, DSP capabilities – including single-cycle MAC operations – and 512kbyte of flash.
For security, secured boot is combined with a cryptographic accelerator and a flash memory protection module to enable secure firmware upgrades and secure debug.

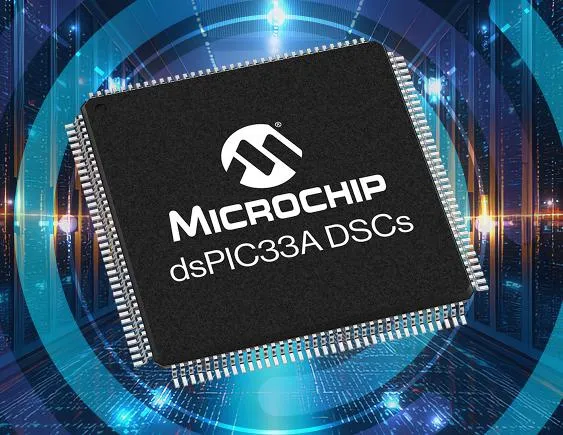

Called the dsPIC33AK512MPS512 family, these “devices enable the implementation of computation-intensive control algorithms for improved energy efficiency in motor control, AI server power supplies, energy storage systems and complex sensor signal processing with machine learning based inferencing”, according to Microchip.
A block with a high-speed comparator, a pulse density modulation DAC and a slope compensation unit is included for implementing buck, boost and buck-boost dc-dc converter current loops – the slope unit being useful to avoid sub-harmonic oscillation under as peak current mode control.
Hardware safety features are built in towards complying with ISO 26262 and IEC 61508 functional safety.
Operation is over 3 to 3.6V and -40 to +85°C (+125°C and +150°C parts are planned).
Packages up to 128pads are available.
A related family for multi-motor control, dsPIC33AK512MC, has half the number of DACs (4x), drops the crypto accelerator and only has 16bit 1.25ns PWMs.
Find the dsPIC33AK512MPS512 family on this Microchip web page.
