The ISP3080’s interoperability is secured through conformance with the FiRa standard which allows UWB connections both to other vendors’ FiRa compatible chipsets and UWB equipped mobile phones, such as the latest generation Apple, Google and Samsung devices.

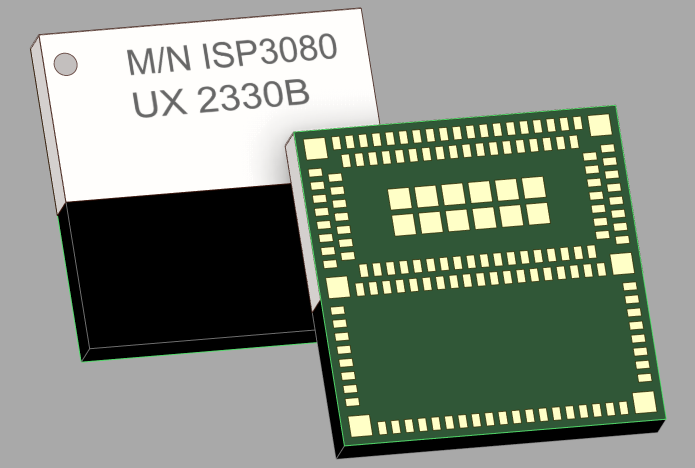

The module is a fully integrated device, requiring only power to create a fully functioning UWB and BLE node, with both antennas integrated into the module.
It measures 12 x 12 x 1.5 mm. Ultra low power can be achieved by using a combination of Bluetooth and the integrated accelerometer to switch on the UWB transceiver only when necessary.
Applications for the device include secure entry, real-time location systems, ticketing and barrier control, and hands-free key solutions.
The device offers a wide range of peripherals allowing a comprehensive selection of digital and analogue connections, including UWB, SPI, UART, I2C, programmable general purpose I/Os and on-board analogue to digital converters
